High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder

    Buy cheap High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder from wholesalers

    Buy cheap High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder from wholesalers
    • Buy cheap High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder from wholesalers

    High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder

    Ask Lasest Price
    Brand Name : Wulong
    Model Number : SFSP120x2 serial
    Certification : ISO9001
    Supply Ability : 15 Set/Sets per Month
    Delivery Time : Delivery according to the time agreed by both parties
    Price : Negotiable
    • Product Details
    • Company Profile

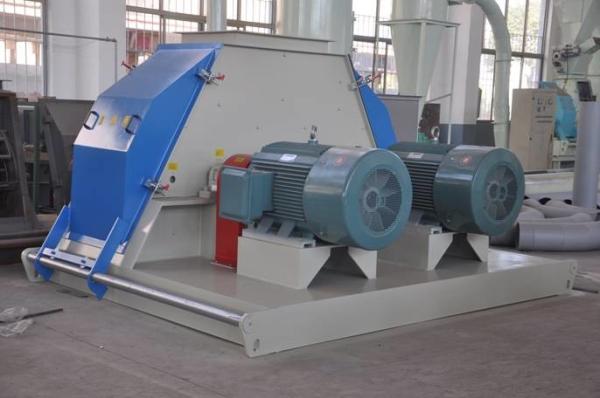

    High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder

    High Efficiency Straw Hammer Mill Wheat Straw Cotton Stalks Wood Chips Grinder


    Application and Feature

    SFSP120x2 serial straw hammer mill is mainly suitable for coarse crushing and fiber processing of various granular grain materials, such as straw sorghum straw wheat straw cotton straw rape straw wood chips, etc.

    ● Adopt dual rotors mechanism, with a great crushing chamber and large inlet and outlet, suitable for crushing large type raw material.

    ● Suitable for artificial board, chemical fertilizer, straw burning particles, new energy processing.

    ● Main sieve pore: Φ3.0mm~ Φ8.0mm.

    ● Particle size is mainly from 2~100 meshes.


    Main specifications and technical parameters

    Items and typeSFSP120×2×60SFSP120×2×70SFSP120×2×80
    Rotor diameter(mm)148014801480
    Width of crusher chamber (mm)120012001200
    Spindle speed (r/min)600700800
    Hammers quantity (pieces)180216240
    Motor power(KW)75/9075/9090/11090/110110/132110/132

    Outline

    dimension

    Length(mm)220025502800
    Width(mm)300030003000
    Height(mm)180018001800
    Weight (kg)480058506800

    The characteristics of this series of Straw grinding mill are:

    1. It adopts steel plate welding structure, the rotor of pulverizer and motor are installed on the same base, and the column pin coupling is used to drive directly, so the transmission efficiency is high.

    2. The rotor is checked by dynamic balance, so that the rotor works smoothly and can work in reverse direction.

    3. Adopt dual rotors mechanism, the operation door has a safety interlock device to ensure that the operating door can not be opened when the rotor is rotated, so as to ensure safety.

    4. The feeding port can be equipped with various feeding mechanisms at the top of the crusher.

    5. The machine is simple, durable, high productivity, easy to operate, safe and reliable.
