Automatic Maize Crushing Alcohol Production Equipment For Alcohol Plant Industry

The feedstock corn is discharged from the bottom of the silo through an electric valve, conveyed to the crushing workshop by conveyor, and conveyed to the bucket scale by bucket elevator, then to remove impurities in the corn by sieve and stone removal machine. After cleaning, the corn goes into the buffer bin, and then through the iron removal variable frequency feeder to feed into the crusher uniformly. The corn is hit by hammer at a high speed, and qualified powder material enters into the negative pressure bin. The dust in the system is inhaled to the bag filter through a fan. The recovered dust returns to the negative pressure bin, and the clean air is discharged to the outdoor. In addition, the negative pressure bin is equipped with a material level detection alarm, the fan is equipped with a silencer. The whole system operates under the micro negative pressure, with low power consumption and no dust spillover in the working environment. The crushed powder is conveyed to the mixing system by the screw conveyor at the bottom of the negative pressure bin. The mixing system is controlled by computer and the ratio of powder material and water is controlled automatically.

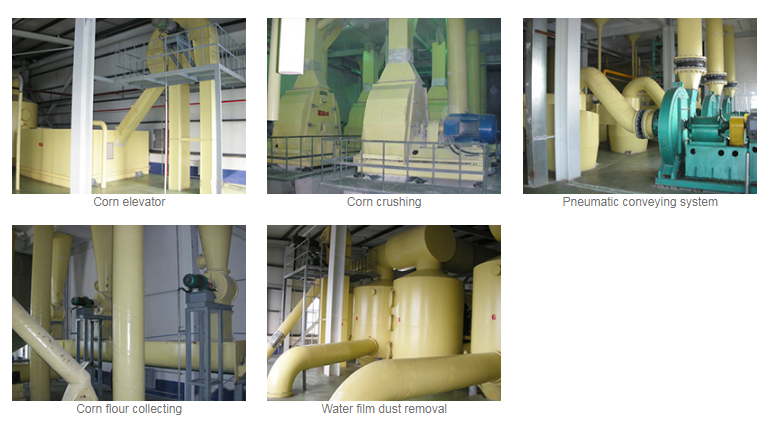

Work Site

The capacity of 150,000 tons of maize/corn fuel ethanol crushing project for Jilin XinTianLong Industry Co., Ltd.

The annual output of 600,000 tons of maize/corn fuel ethanol crushing project for Jilin Fuel Ethanol Co., LTD

　　The corn crushing project in the production line with annual output of 100,000 tons of high quality of lactic acid for Henan Jindan Lactic Acid Technology Co., Ltd

Jiangsu Wulong Machinery Co., Ltd is located in the western suburb of Changzhou—an opening-up coasted city of Jiangsu. The company owns convenient transportation, facing Shanghai-Beijing Railway, Shanghai-Nanjing Expressway and Changzhou Airport in the north, and bordered new No. 239 Provincial Freeway.

Jiangsu Wulong Machinery Co., Ltd is a director unit of China’s Brewing Industry Association Ethanol Branch and a member of China’s Separating Machinery Industry Association. The company was established in 2000 restructuring by the original Changzhou Wujin Fermentation Engineering Machinery Plant (a municipal state-owned enterprise). The original plant was built in 1969. The company has five professional manufacturing branch offices at the moment; they are complete set of ethanol equipment manufacture branch office, crushing equipment manufacture branch office, heat exchanger manufacture branch office, decanter centrifuge manufacture branch office, and belt press filter manufacture branch office. Products are well sold to over 800 companies in over 30 provinces, cities and autonomous regions; some of them are exported to over 10 countries in Europe, Africa and Southeast Asia, and are well received by customers. The company now has more than 160 staffs and workers, 28 among that are various kinds of senior or middle professional technicians. The factory occupies an area of 24,000 square meters, and having a fixed capital of more than 30million Yuan. For dozens of years, the company has built long-term technical cooperative relations with more than ten domestic scientific and research institutes. The company has passed the authentication of ISO9001 Quality System in 2000, and strictly executes the quality system standards of ISO9001. Taking the objective of “excellent products, advanced technologies, long-term services”, the company will devote to the technical development of domestic fermentation and environment protection. Sincerely welcome the exchanges and cooperation with colleagues at home and abroad.
