Large Yield WF66 Serial Corn Maize Grinding Hammer Mill Machine For
Feed Plant
Maize /Corn Hammer Mill , Grain Feed Hammer Mill, Wheat Hammer Mill , Rice Hammer Mill, Fiber Hammer Mill
WF66 Serial Hammer Mill Application
WF66 serial hammer mill adopts “Water Drip” structure and it is the
latest crushing technology and manufacturing process introduced
from abroad.
It is suitable for crushing maize, sorghum, wheat, pulp, fiber and
other materials, it is characterized by high linear velocity,
energy saving and high efficiency, which is widely used in the
ethanol, grain, aquatic feed, citric acid, food and other
industries.
WF66 Serial Hammer Mill Feature
● The advanced crushing chamber structure design of water drip
shape, application of adjustable pressure screen stop-gauge device
and tuning technology, increasing the output.
● Fully optimized hammers arrangement, make the hammer mill’s
vibration and noise lower, running more smoothly and efficiency
higher.
● The application of adjustable pressure screen stop-gauge device
at the top of the crushing chamber and the tuning technology, to
destroy the material’s circulation layer, increase crushing
efficiency.
● The application of the fixed knife device at the bottom of the
crushing chamber, destroy the material’s circulation layer
effectively, increase its capacity by 20%.
● Adopt various precision detection including high precision
dynamic balancing, to make sure it runs more smoothly, with lower
noise and more ideal performance.
WF66 Serial Hammer Mill Main specifications and technical parameters
Item and Parameters | WF66-60 | WF66-85 | WF66-110 |
Rotor diameter(mm) | 660 | 660 | 660 |
Width of crusher chamber (mm) | 600 | 850 | 1100 |
Width of crusher chamber (mm) | 2950 | 2950 | 2950 |
Driving type | Coupling drive | Coupling drive | Coupling drive |
Hammer quantity (pieces) | 64 | 96 | 128 |
Motor power (Kw) | 55/75 | 75/110 | 110/160 |
Capacity(T/h) (Maize) | 5.5~7.5 | 7.5~11 | 11~16 |
Reference weight (kg) | 1650~1750 | 1980~2100 | 2600~2750 |
Reference outline
dimension (mm) | 2260×1340×1590 | 2700×1340×1590 | 3000×1340×1620 |
Pre-sale service:
1.Provide our client with investment guide for free.
2.Provide our client with evaluation investment scheme for free
3.Free visit to our factory.
4.Design of production line scheme is provided for free.
In-sale service:

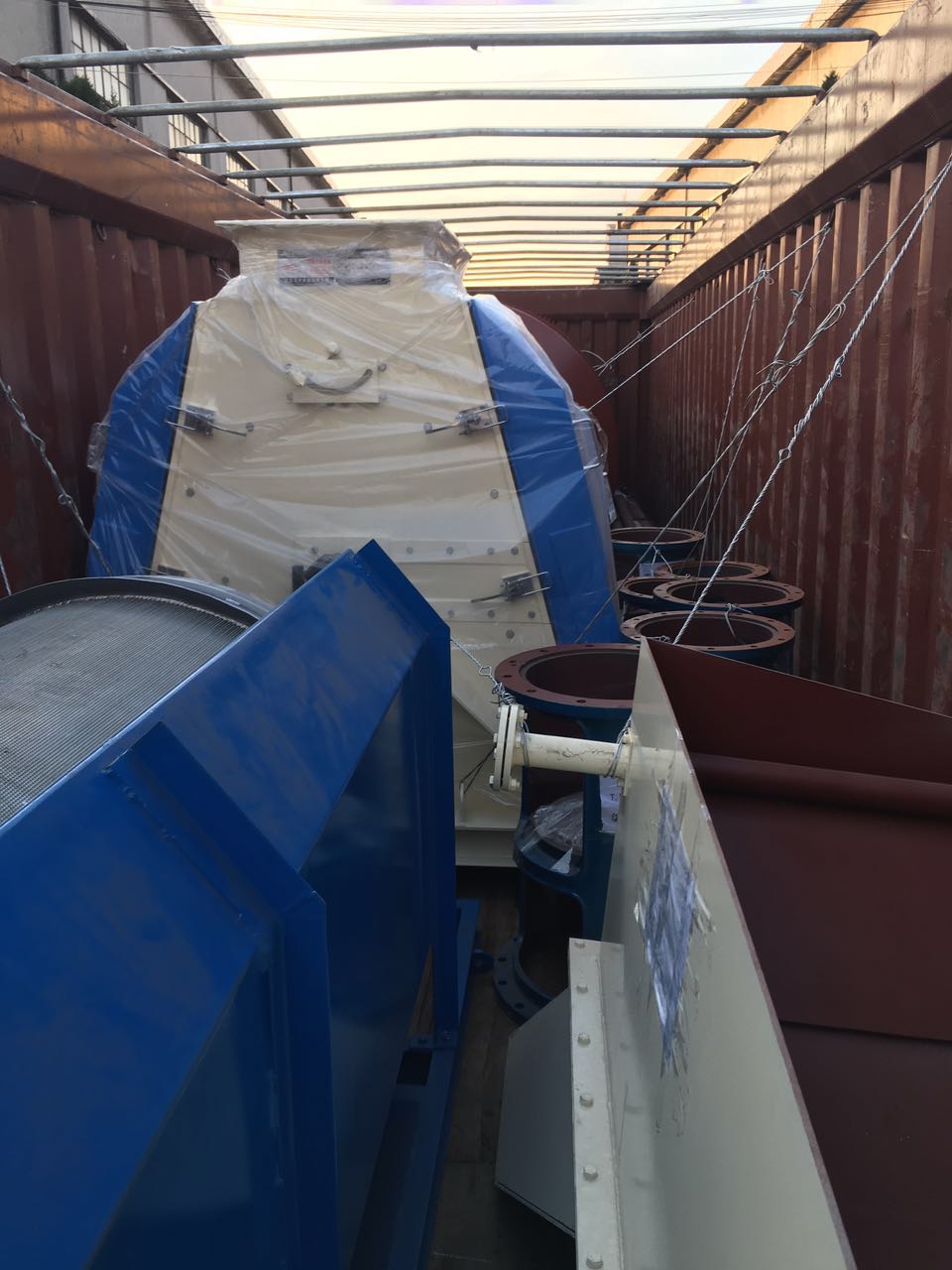

1. Experienced workers are sent to provide track service when
equipment is transported.
2. Experienced technicians or engineers will be sent for on-site
installation, adjustment and technical devices according to
clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and
wearing parts list in duplicate will be provided for free.
Post-sale service:
1. On the premise that equipment is operated correctly and in
warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.
3. We provide permanent technology support and related help.
² Professional engineering design
² Earliest delivery ,high quality with best price
² Safe and efficient transport services
² One year guarantee for whole machine, except the wearing parts .
² We can provide engineers available to service machinery overseas.
² 24 hours technical support by E-mail or telephone.
