Water-Drop Type corn and feed hammer mill stainless steel material Hammer Mill Machine
Hammer crusher made of stainless steel ,corn shredder /
disintegrator

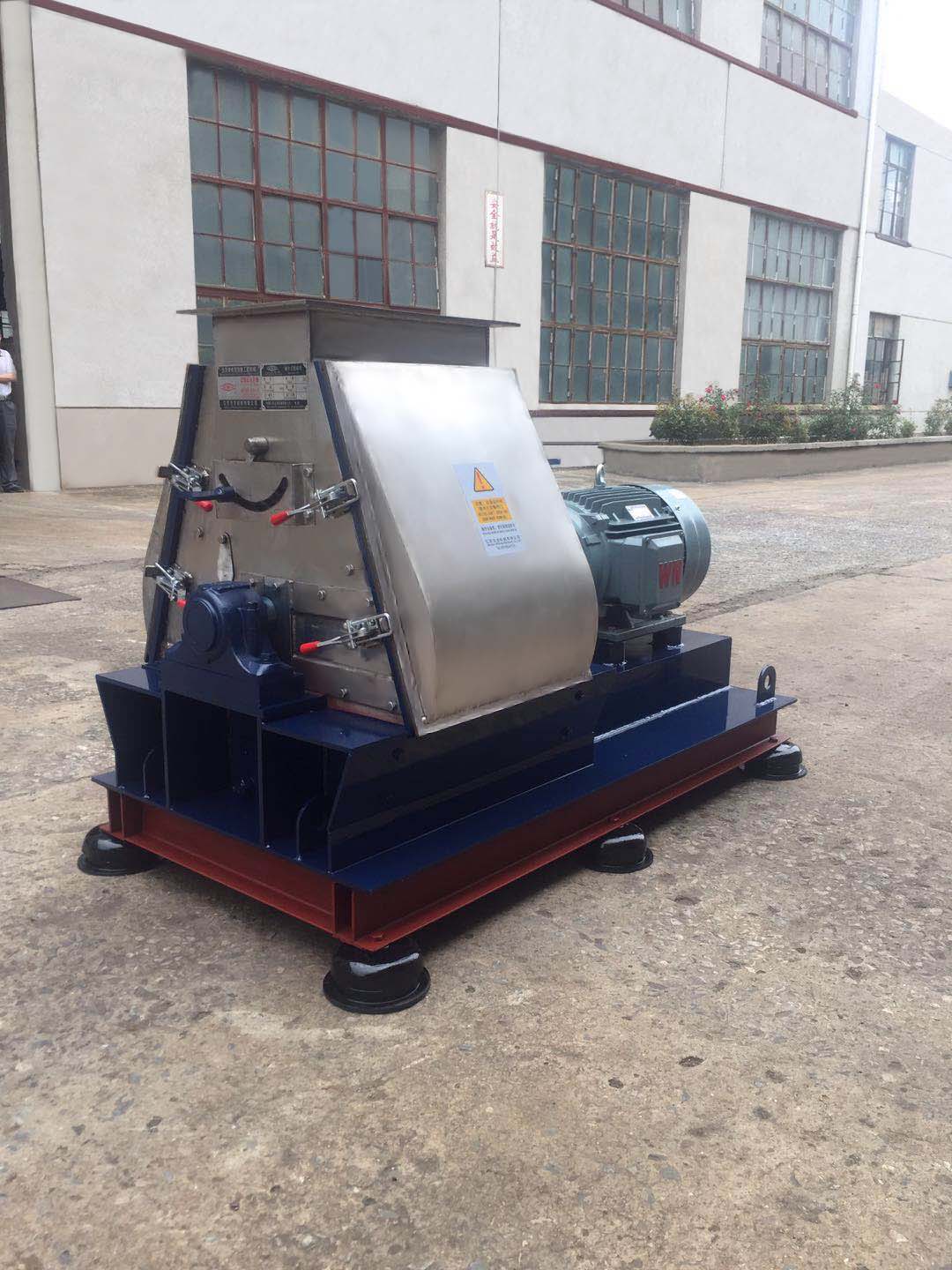

JFS-3000 serial water drip type hammer mill Scope of application
JFS-3000 serial water drip type hammer mill adopts “Water Drip”
structure and new manufacturing process. It is suitable for
crushing many materials such as maize, bean cake, sorghum, soybean,
conch and stem, which is widely used in the ethanol, grain,
feedstuff, citric acid, starch and other industries.
JFS-3000 serial water drip type hammer mill Performance features
1. The drop-shaped crushing chamber design in real sense.
2. Adopt various precision detection including high precision dynamic
balancing, to make sure it runs more smoothly, with lower noise and
more ideal performance.
3. Imported parts for key positions makes the service life longer
and lowers maintenance costs.
Main specifications and technical parameters
| Models | JFS3000-36 | JFS3000-40 | JFS3000-45 | JFS3000-50 | JFS3000-60 |
| Rotor diameter | 600 |
| Width of crusher chamber | 360 | 400 | 450 | 500 | 600 |
| Spindle speed (r/min) | 2970 |
| Driving type | Elastic pin coupling direct drive, Positive &negative running |
| Hammer quantity (pieces) | 48 | 48 | 54 | 60-72 | 72-84 |
| Weight (kg) | 2000 | 2300 | 3500 | 3800 | 4200 |
Sieve plate | Length× width | 720×358 | 720×398 | 720×448 | 720×498 | 720×598 |
| Wrap angle | 2 8 0º |
| Power of motor(KW) | 22-30 | 30-37 | 37-45 | 45-55 | 55-75 |
Outline dimension (Length × width × height) | 1760×1000 ×1180 | 1820×1000 ×1180 | 1900×1000× 1180 | 1980×1000 ×1180 | 2100 ×1000 ×1180 |
Reference productivity | Sieve plate φ3.0 | 3-4 | 3-5 | 4-8 | 7-12 | 11-16 |
| Sieve plate φ1.6 | 2-3 | 2-4 | 4-6 | 6-8 | 8-10 |
| Reference weight | 1200 | 1400 | 1600 | 1800 | 2000 |
JFS-3000 serial water drip type hammer mill drawings
For structure diagram and installation foundation
JFS-3000 Installation schematic diagram
Structure diagram and installation foundationl
| JFS-3000-36 | JFS-3000-40 | JFS-3000-45 | JFS-3000-50 | JFS-3000-60 |
| A | 400 | 440 | 490 | 540 | 650 |
| B | 1900 | 1950 | 2000 | 2050 | 2180 |
Working Principle
Material is fed from the top inlet and will enter into the crushing
chamber through the feeding guide mechanism. The material is struck
by high speed rotating hammerer, so it is crushed by being rubbed
and struck in cycles and cutting function of punching sieve.
Meanwhile under the action of centrifugal force and air flow, the
material of qualified granularity will pass through the sieve pore
and discharge from the outlet under the base. Customer can adapt
multiple auxiliary equipments to finish the work such as material
collection, conveying and warehouse entry based on the specific
process.
Packaging & Shipping
1. Small parts use wooden box, large equipment use plastic film.
2. Columns are fastened with iron support.
3. Type of shipping: Transportation by sea
4. Port: Shanghai port
