Superfine Grinder , Energy Saving King Hammer Mill Machine, Double
Rotor Crusher
Superfine Grinder Double Rotor Crusher, Energy Saving King Hammer
Mill Machine

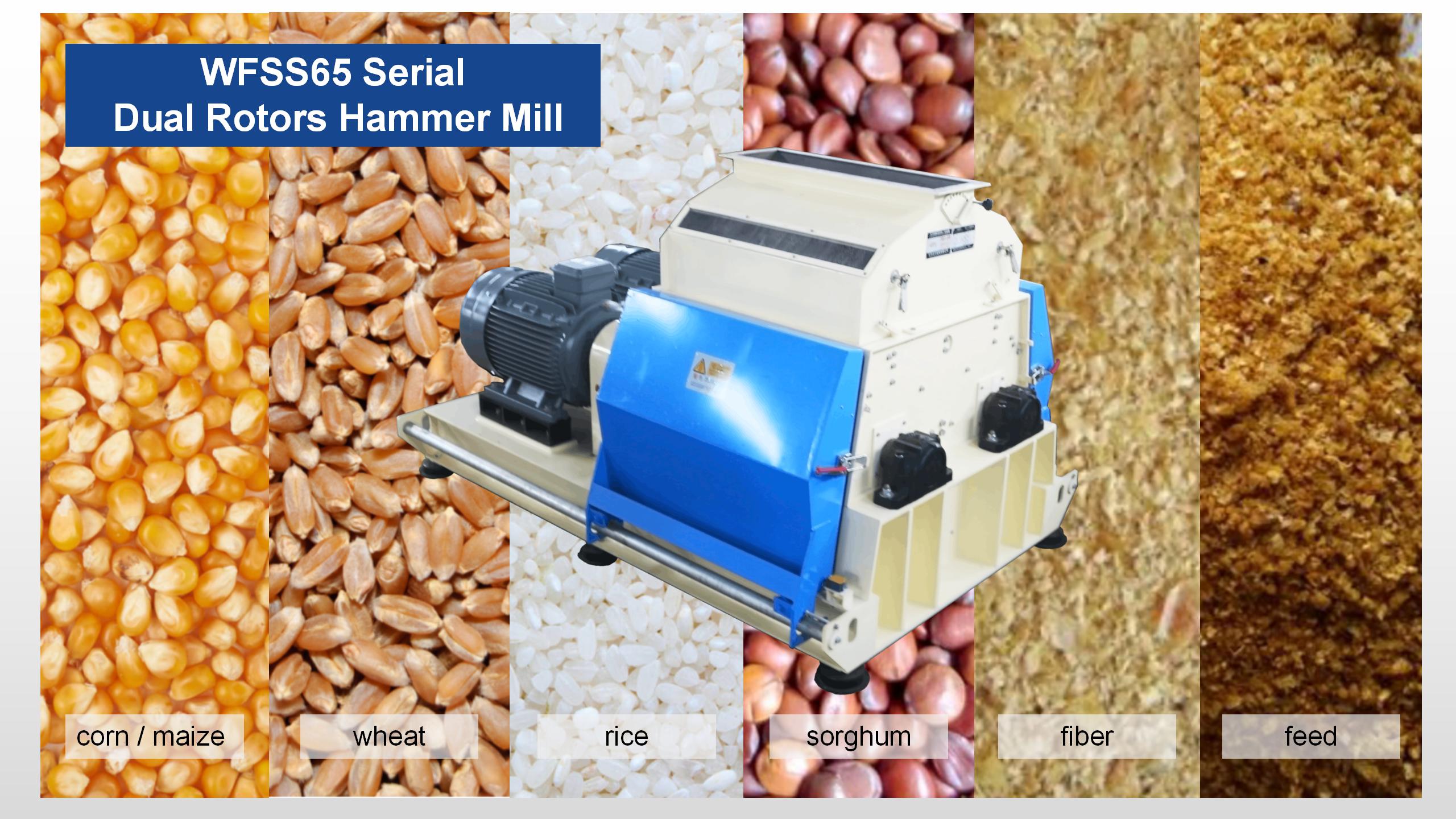

WFSS65 Serial Superfine Grinder Dual Rotors Hammer Mill Scope of application
WFSS65 serial dual rotors hammer mill ( Superfine Grinder Double Rotor Crusher / Energy Saving King Hammer
Mill ), especially suitable for crushing feedstock such as corn,
sorghum, wheat, energy saving 20-25% compared to the similar kind
of crusher. It is widely used in alcohol, grain, feed, citric acid,
food, cellulose and other industries.
WFSS65 Serial Superfine Grinder Dual Rotors Hammer Mill Performance features
1. The two rotors rotate in the same direction at a high speed, and
the double linear velocity improves the impact velocity between
feedstock and hammers, thereby, improving the crushing efficiency greatly.
2. A guide plate is arranged in the middle of the rotor to destroy
the circulation layer in the crushing chamber and increase the
impact probability of materials.
3. "Double water drop" screen structure, increases the effective sieving area by 20%, compare with the single rotor hammer mill of same power,
its capacity is increased by 20-25%.
Power consumption of crushing one ton of corn is 8-10 KWH
Superfine Grinder / Crusher Energy Saving King hammer mill
Main specifications and technical parameters
| Item and type | WFSS65-65 | WFSS65-75 | WFSS65-85 | WFSS65-100 |
| Rotor working diameter (mm) | 650 |
| Width of crushing room (mm) | 650 | 750 | 850 | 1000 |
| Spindle speed (r/min) | 2970 |
| Transmission type | Coupling drive |
| Quantity of hammers (pieces) | (36-48)×2 | (48-64)×2 | (48-64)×2 | 80×2 |
| Motor power (Kw) | 45/55×2 | 55/75×2 | 75/90×2 | 90/110x2 |
| Yield: corn with sieve pore of φ2.0mm | 12-13.5t/h | 13.5-18t/h | 18-20t/h | 20-25t/h |
| Dimensions: length × width × height (mm) | 2235×1830×1610 | 2335×1830×1610 | 2435×1830×1610 | 2900×1830×1610 |
WFSS65 Serial Superfine Grinder Double Rotor Crusher Drawings
Structure Diagram of WFSS65 Dual Rotors Hammer Mill
1. Feeding guide mechanism, 2. Engine base, 3. Press sieve
mechanism, 4. Operating door,5. Motor, 6. Upper shield, 7. Rotors
and other components.
Figure 2: Foundation Installation Drawing of WFSS65 Dual Rotors
Hammer Mill
Working Principle
Material is fed from the top inlet and will enter into the crushing
chamber through the feeding guide mechanism. The material is struck
by high speed rotating hammerer, so it is crushed by being rubbed
and struck in cycles and cutting function of punching sieve.
Meanwhile under the action of centrifugal force and air stream, the
material of qualified granularity will pass through the sieve pore
and discharge from the outletunder the base. Customer can adopt
multiple auxiliary equipments to finish the work such as material
collection, conveying and warehouse entry based on the specific
process.

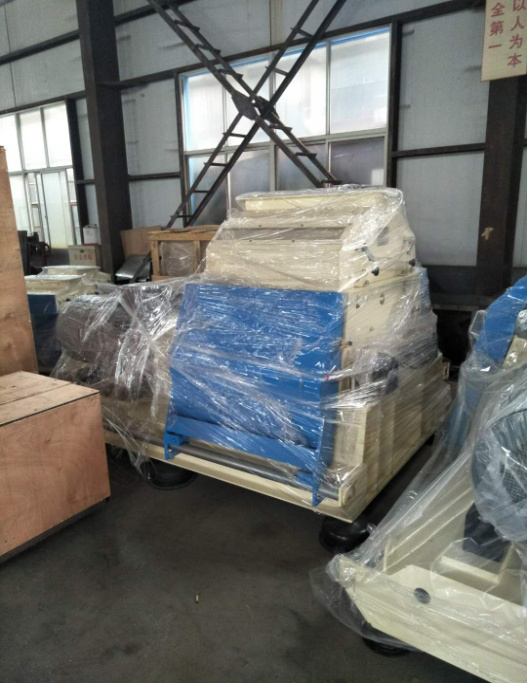

Packaging & Shipping
1. Small parts use wooden box, large equipment use plastic film.
2. Columns are fastened with iron support.
3. Type of shipping: Transportation by sea
4. Port: Shanghai port
Jiangsu Wulong Machinery Co., Ltd. is a manufacturer of Crushing equipment / Hammer Mill Machine in China. our products has been exported to more than 10 countries
in Europe, Africa and Southeast Asia, and are well received by
customers.
Pre-sale service:
1.Provide our client with investment guide for free.
2.Provide our client with evaluation investment scheme for free
3.Free visit to our factory.
4.Design of production line scheme is provided for free.
In-sale service:
1. Experienced workers are sent to provide track service when
equipment is transported.
2. Experienced technicians or engineers will be sent for on-site
installation, adjustment and technical devices according to
clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and
wearing parts list in duplicate will be provided for free.
Post-sale service:
1. On the premise that equipment is operated correctly and in
warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.
3. We provide permanent technology support and related help.
ENTERPRISE TENET : Excellent Products / Advanced Technologies /
Long-term Services
* Earliest delivery ,high quality with best price
* Safe and efficient transport services
* One year guarantee for whole machine, except the wearing parts .
* We can provide engineers available to service machinery overseas.
* 24 hours technical support by E-mail or telephone.
* We will remind you to do the normal maintenance.
* Your suggestions or any comments & reflection would be treated in
priority.
Your Requirement Our Goal !
