Carbon Steel Material Withstand Voltage 0.6Mpa 200m² Non-Detachable
Spiral Plate Heat Exchanger
BL Serial can non-open Spiral Plate Heat Exchanger , non-openable Coil
Type Spiral Plate Heat Exchanger
BL non-detachable Coil Type Spiral Plate Heat Exchanger
Spiral Plate Heat Exchanger Product Description
The spiral-plate heat exchanger is a kind of high-efficiency
heat-exchange equipment, which is suitable for
steam-steam,steam-liquid, liquid-liquid heat transfer.
It is applied to the industries such as chemistry, petroleum,
solvent, medicine, foodstuff,light industry, textile, metallurgy,
steel rolling, coking and so on.
It can be divided into the non-detachable/non-openable spiral-plate
heat exchanger (BL)and detachable/open spiral-plate heat
exchanger(KL).

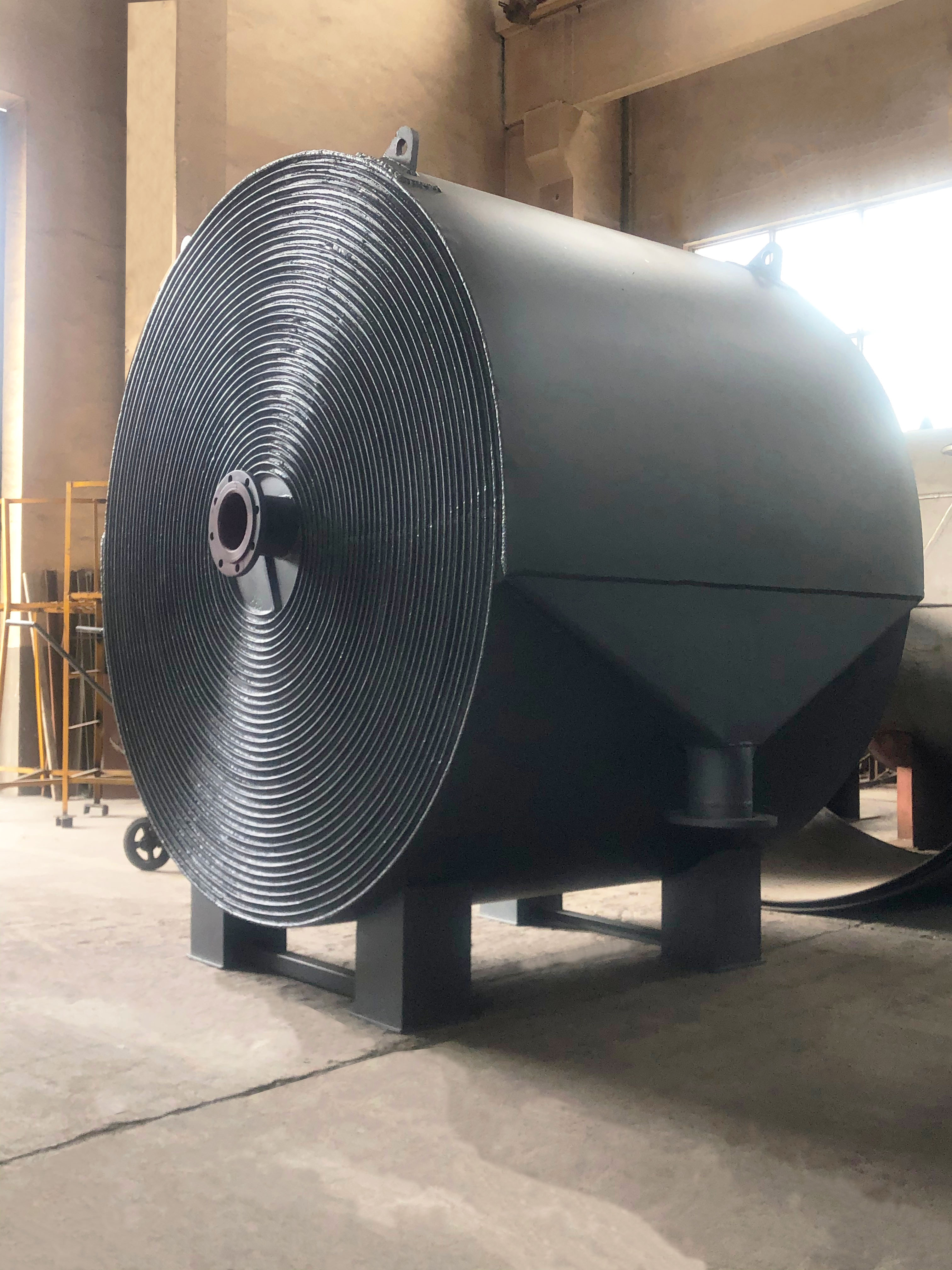

Spiral Plate Heat Exchanger Structure and function
1. This equipment is made of 2 pieces of rolled steel. The rolled
steel forms 2 uniform spiral channels, so 2 kinds of heat transfer
media can reversely flow and the heat transfer effect is greatly
enhanced.Even 2 kinds of media with small temperature difference
can achieve the ideal heat transfer effect.The adapter tube on the
shell uses the tangential structure, so the local resistance is
low.Because the curvature of spiral channel is uniform and there is
no big diversion and the total resistance is low when the liquid
flows in the equipment, the designed flow rate can be improved in
order to make it have higher heat transfer capacity.
2. The end face of type BL non-detachable spiral-plate
heat-exchange spiral channel is sealed by welding.So, it has higher
leakproofness.
3. The structural principle of type KL detachable spiral-plate heat
exchanger is basically same with that of non-detachable heat
exchanger. But, its 2 channels can be opened and cleaned. It can be
widely applied.
4. KL model removable spiral plate heat exchanger has the same
structure and principal with non-removable spiral plate heat
exchanger. But its two pass way can be removed and cleaned
separately and it has wider using range.
5. The spiral-plate heat exchanger can be divided into PNO.6,
1.0,1.6,2.5PMa (it refers to the maximum tolerable working pressure
of single channel) according to the nominal pressure.
6. It can be divided into carbon steel and stainless steel
according to the material.
7. The users can select them according to the actual process
condition. Parallel combination, series combination, same gap
between equipment and channel. Mixed combination: one channel is
combined in parallel. One channel is combined in series. Parallel
combination, series combination, same gap between equipment and
channel. Mixed combination: one channel is combined in parallel.
One channel is combined in series.
BL serial non-detachable spiral heat exchanger Application and
feature
BL serial non-detachable spiral heat exchangers are the necessary
important equipment for the heat exchange in the ethanol, solvent,
food fermentation, pharmacy, petrochemical industry, coking
gasification and other industries, which plays an immeasurable role
in the ethanol industry.
This serial spiral plate heat exchanger is suitable for the
convective heat exchange between liquid and liquid, gas and gas,
gas and liquid that contains less than 50% weight of particles.
BL serial non-detachable Spiral Plate Heat Exchanger
Main specifications and technical parameters
Carbon Steel Material Withstand Voltage 0.6Mpa 200m² Non-Detachable
Spiral Plate Heat Exchanger
| Type | BL |
| Structure | non-detachable |
| Working temperature | -10 - +200℃ |
| Working pressure | 0.6MPa |
| Heat exchange area | 200㎡ |
| Material | carbon steel |
| Passage | 20mm |

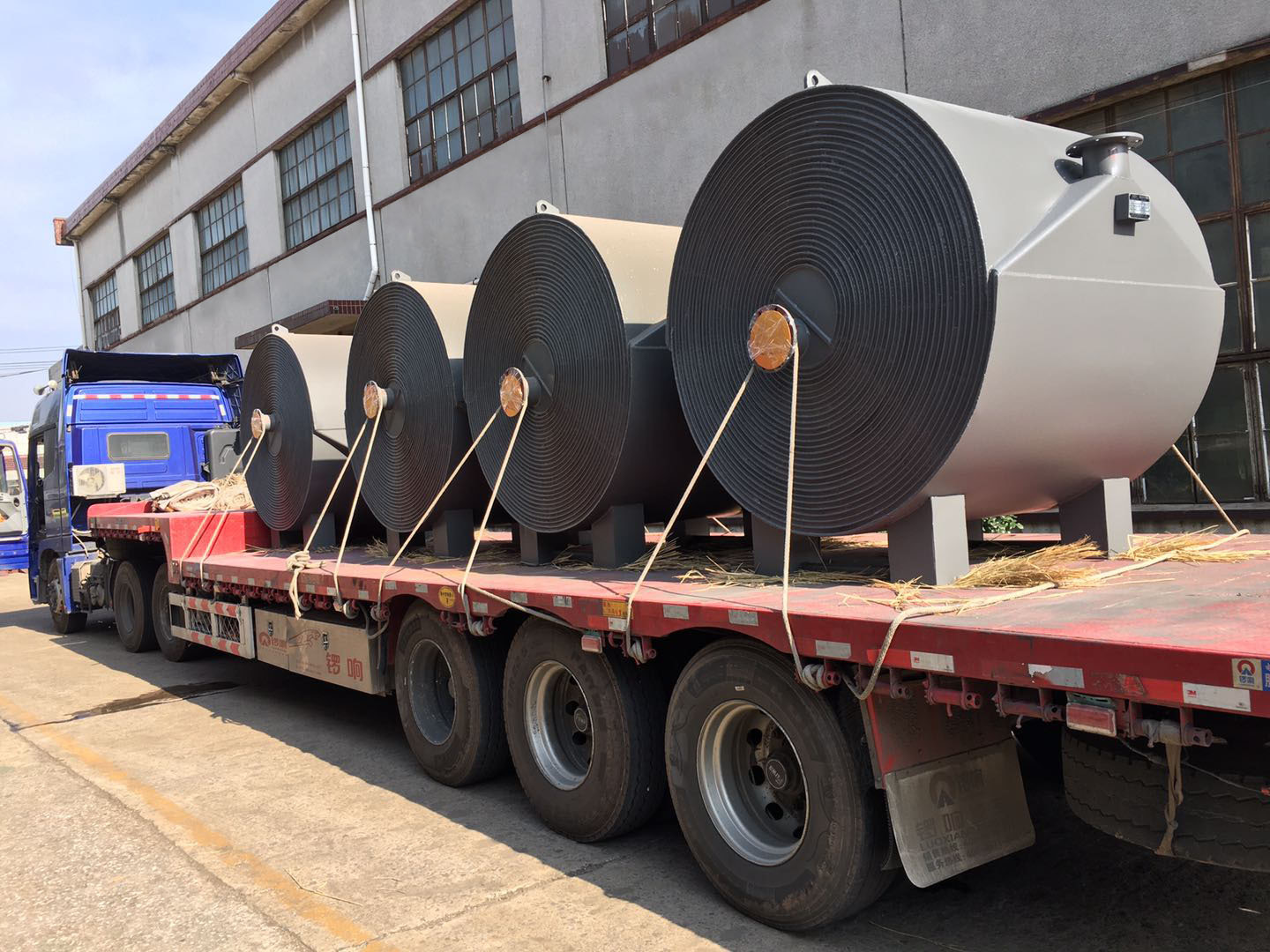

Packaging & Shipping
1)small parts use wooden box, large equipment use plastic film.
2) Columns are fastened with iron support.
3) FOB or CIF.
4) Sea shipping.
Jiangsu Wulong Machinery Co., Ltd. is a manufacturer of heat exchanger equipment in China. our
products has been exported to more than 10 countries in Europe,
Africa and Southeast Asia, and are well received by customers.
Our Services
1. 12 months guarantee period from machine arrive date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 8* 24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done
timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated
in priority.
After-sales Service
1). Our company can provide a sophisticated product after-sale
service and can ensure the implementation, maintenance and
commission of projects.
2). We can reach the project site after receiving the user’s
notification.
FAQ
About Delivery time
Usually we send tne shipments in FOB term.However, the terms of CIF
are acceptable which depend on the preference of clients.
About Lead Time
Usually it takes about 30-40 days after we receive your down
payment and drawing confirmation.
About Payment Term
By T/T in Advance, or Irrevocable L/C as Sight.
Our machines can be customized, leave an inquiry to know more
details about price, packing and shipping.
* Earliest delivery ,high quality with best price
* Safe and efficient transport services
* 24 hours technical support by E-mail or telephone.
